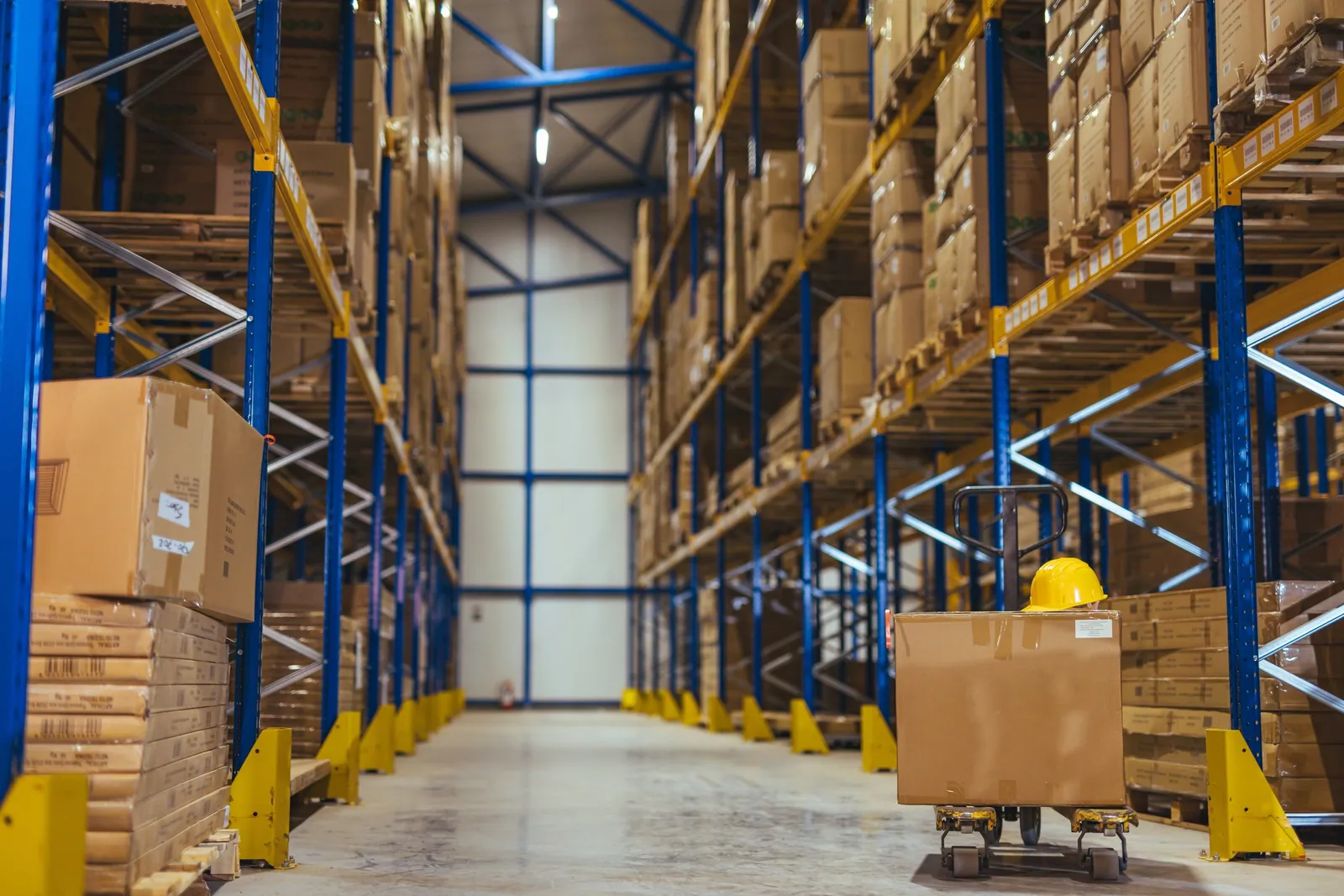

Start With the Pallet Count, Not the Floor
The floor is the limit, not the answer. Start with pallets on your busiest day, plus growth.
The Job
- 900 pallets at peak, planned growth to 1,100.
- Pallets 48" x 40", loads 48" tall including the pallet, heaviest pallet 2,200 lb.
- Building 20 ft clear, standard sprinklers, 10,000 sq ft, dock on the short wall.
- One 5,000 lb sit-down forklift, max fork height 189".
Step 1: Levels
Beam spacing is load height plus about 6" of lift clearance plus the beam face: 48 + 6 + 4 = 58" centres. Levels: floor, 58", 116", 174". The forklift reaches 189", so the top beam is in reach. Clear height check: say the sprinkler deflectors are at 20 ft (240") and need 18" clear; confirm both with your fire engineer. 174" beam + 48" load = 222", and 240 - 222 = 18". It fits, just. That is 4 pallets high (rack height calculator).
Step 2: Positions per Bay
A 96" beam holds two 48 x 40 pallets with the 40" side facing the aisle. 96 - 80 = 16" of spare span, split between the two ends and the middle gap. One bay, four levels: 8 positions.
Step 3: Bays
1,100 positions ÷ 8 per bay = 138 bays, rounded up to fit the rows evenly.
Step 4: Rows
Rows run the long way, perpendicular to the dock. A bay repeats every 96" beam + 3" upright = 99". A row of 12 bays also needs an end upright: 12 x 99 + 3 = 1,191", about 99 ft 3". 138 bays ÷ 12 = 11.5, so 12 rows of 12 bays = 144 bays, 1,152 positions.
Every row face needs an aisle. Put a single row on each wall and the other 10 back-to-back: 5 double rows, 6 aisles. The 48" pallets hang 3" past each side of the 42" frames, so an 8" clear flue needs a 14" frame gap. A double row is 42 + 14 + 42 + 3 + 3 = 104" to the pallet faces; a wall row is 48". With 12.5 ft (150") sit-down aisles: 2 x 48 + 5 x 104 + 6 x 150 = 1,516", about 126 ft 4" across. Lengthwise, 99 ft 3" of rack plus a 13 ft cross aisle at each end is 125 ft 3". That is about 15,800 sq ft. The building is 10,000.
Step 5: Fit the Building
Three options, cheapest first:
- Go higher. Not here; the sprinklers set the top.
- Narrower aisles. A reach truck at 9 ft (108") instead of 12.5 ft saves 42" x 6 aisles = 252", or 21 ft of width: about 105 ft 4" x 125 ft 3", or about 13,200 sq ft. Still over.
- A dense block for the fast movers. 200 of the 1,100 pallets are 6 SKUs. Put them in push-back 3 deep and 4 high: each lane holds 12 pallets, so 200 pallets need 17 lanes. At two lanes per bay that is 9 bays (216 positions) instead of 25 selective bays. Each lane level holds one SKU. The selective rack drops to 10 rows (4 double rows, 2 wall rows, 5 aisles): 96 + 416 + 540 = 1,052", about 87 ft 8" x 125 ft 3", or about 11,000 sq ft, before the push-back block and staging.
Even with options 2 and 3, this job does not fit 10,000 sq ft as planned. The choices are fewer pallets on site, more product in dense storage, or more building. That is why we draw it before we price it.
Step 6: The Parts List
For the selective rows (10 rows of 12 bays, 4 levels: the floor has no beams, so 3 beam levels):
- Uprights: 13 per row x 10 rows = 130 frames, 42" deep x 16 ft (192" tall gives 174" top beam plus margin).
- Beams: 12 bays x 3 levels x 2 beams x 10 rows = 720 beams, 96" long, rated for at least 2 x 2,200 = 4,400 lb per pair. Pick the beam from the maker's load chart for that beam, span and connector.
- Wire decks: 2 per bay per level: 12 x 3 x 2 x 10 = 720 decks, 42" x 46" waterfall.
- Row spacers: 4 pairs of rows x 13 frames = 52 connection points. The number of spacers at each point comes from the drawing.
- Anchors: 2 per footplate, 130 frames x 2 feet x 2 = 520 wedge anchors.
- Column protectors at the aisle ends: 20.
Plus the push-back block, quoted as a system.
The Three Numbers That Move the Answer
- Load height. Here 48" loads give four levels; 50" loads give only three. Measure the tallest pallet.
- The truck. Here a reach truck instead of a sit-down cut 21 ft off the width.
- SKU profile. The fewer SKUs hold the bulk, the more a dense block pays.
