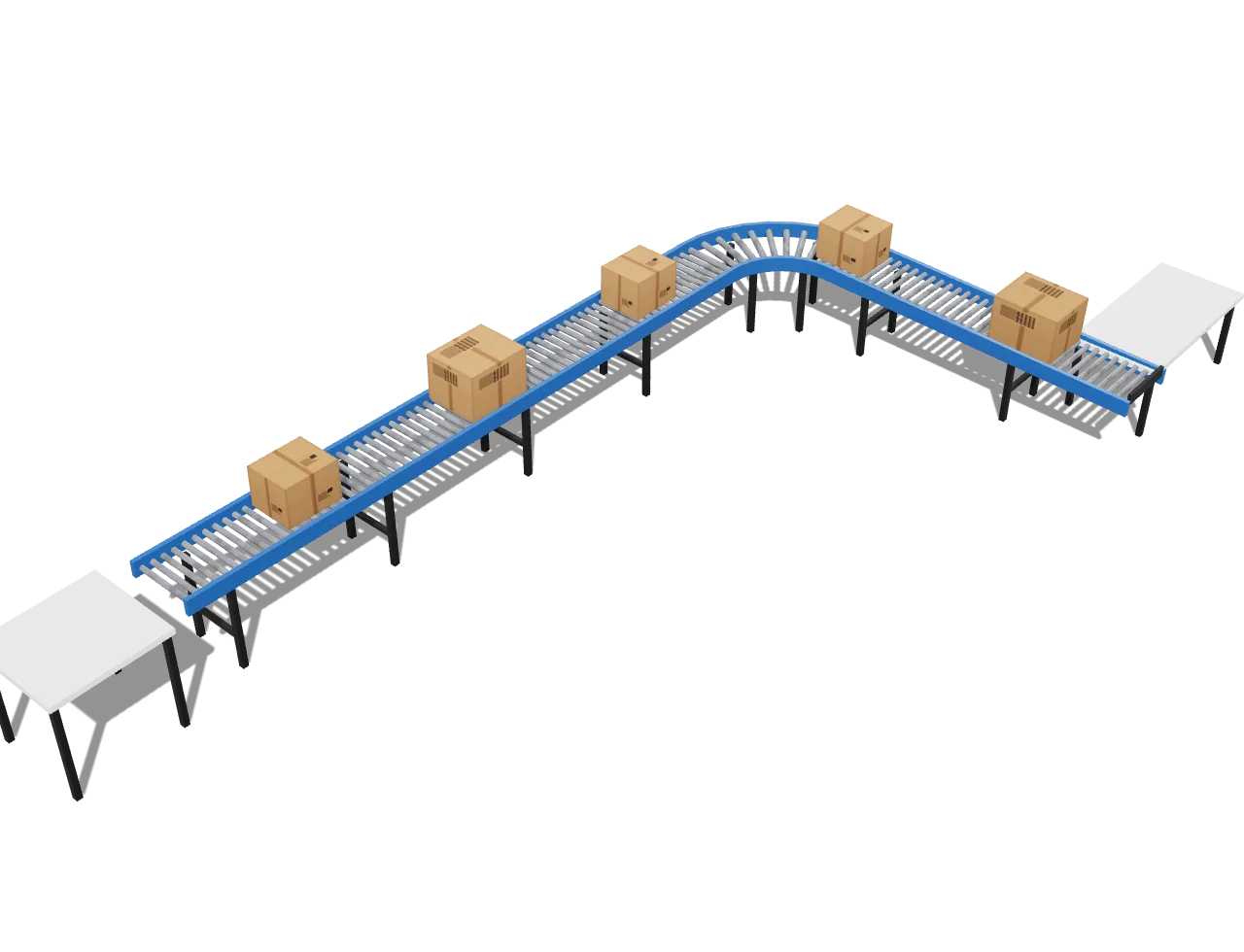

What It Is
Free-turning rollers, no drive. Cartons move by a push or a slope of about 3/8" per foot. The cheapest conveyor, no power.
Sizes
| Item | Standard | Options |
|---|---|---|
| Roller | 1.9" diameter, 16 gauge steel tube | 1 3/8" light duty, 2 1/2" heavy duty, galvanized or PVC-sleeved |
| Roller centers | 3", 4 1/2", 6" | Three rollers must be under the smallest carton at all times |
| Between frames | 12", 18", 24", 30", 36" | Carton width plus 2" |
| Frame | 2 1/2" x 1" channel, 10' sections | 5' sections, curves, spurs |
| Capacity | Set by roller, axle and support spacing | From the maker's chart for the model |
| Stands | H-stands, adjustable 20" to 40" | Tripods, ceiling hangers, casters |
Where It Goes
- Receiving docks.
- Packing lines.
- Pick module takeaway.
Level where people push, declined where cartons travel alone, with an end stop.
Curves, Spurs and Gates
90° curves with tapered rollers, spurs at 30° or 45°, lift-up gates for walk-through. All bolt together.
New or Used
New ships from stock. See used conveyor in stock.
Common questions
What slope does gravity roller conveyor need?
About three-eighths of an inch per foot for cardboard cartons, more for light cartons and totes, less for heavy flat loads.
How wide should the conveyor be?
Carton width plus about two inches, with three rollers under the shortest carton. Measure the widest carton across the conveyor, not its length.
How much weight can gravity roller conveyor carry?
It depends on the roller, axle and support spacing. Use the maker's chart for the model.
Can gravity conveyor be used for totes?
Yes, with closer roller centers and a bit more slope. Skate wheel is often better.
