Warehouse Layout and Design Guide

Layout Is Where the Money Is

Two warehouses with the same floor and rack can hold very different pallet counts. This is the method we use to draw a layout.

Step 1: Collect the Numbers

1. The buildingInside dimensions, clear height to the lowest obstruction (joists, ducts, lights, sprinkler heads), column grid and size, slab thickness, dock doors and spacing, floor drains, fire exits and their paths.
2. The productPallet size (48 x 40 is standard), load height including pallet, heaviest pallet, SKU count, pallets per SKU, how fast each moves.
3. The trucksMake and model of every forklift in the aisles, with the right-angle stack aisle, max fork height and capacity at that height from the spec sheet.
4. The flowWhere product comes in and leaves, case pick versus full pallet, and the peak day, not the average.
5. The rulesSprinkler type (ESFR or standard), fire code storage height limits, commodity class, landlord or insurer conditions.

Step 2: Pick the System First, Then the Layout

The system sets aisle count and row depth:

Most buildings mix selective for the long tail with a dense block for the few fast movers. Try the storage density calculator.

Step 3: Orient the Rows

• Run rows the long way of the building where you can. A cross aisle shortens every row it crosses, so count the bays it costs.
• Rows perpendicular to the dock wall, so trucks drive from the doors straight into any aisle. If this fights the long way, draw both and count positions.
• Row length: long rows need cross aisles for traffic and egress. Set them from your truck traffic and the local fire code. VNA uses a transfer aisle at each end.
• Single rows against the walls (one frame deep), back-to-back rows elsewhere, joined with row spacers and the flue your sprinkler design requires.

Step 4: Set the Aisle Widths

Start from the right-angle stack dimension on the truck's spec sheet. Check whether it already includes clearance before you add any. Typical ranges:

One foot off ten aisles is roughly another row. Models are in the forklift aisle width chart. End cross aisles need 12 to 14 ft for a counterbalance to turn in loaded.

Step 5: Work With the Column Grid

• Columns inside the rack rows, not in aisles. Set the bay module so a column lands in a sacrificed bay, or between back-to-back rows where the fire design allows it. A column can block a required flue and can cost a full bay at every level. Count every lost position on the drawing.
• Columns in aisles get hit. If unavoidable, protect them and widen the aisle.

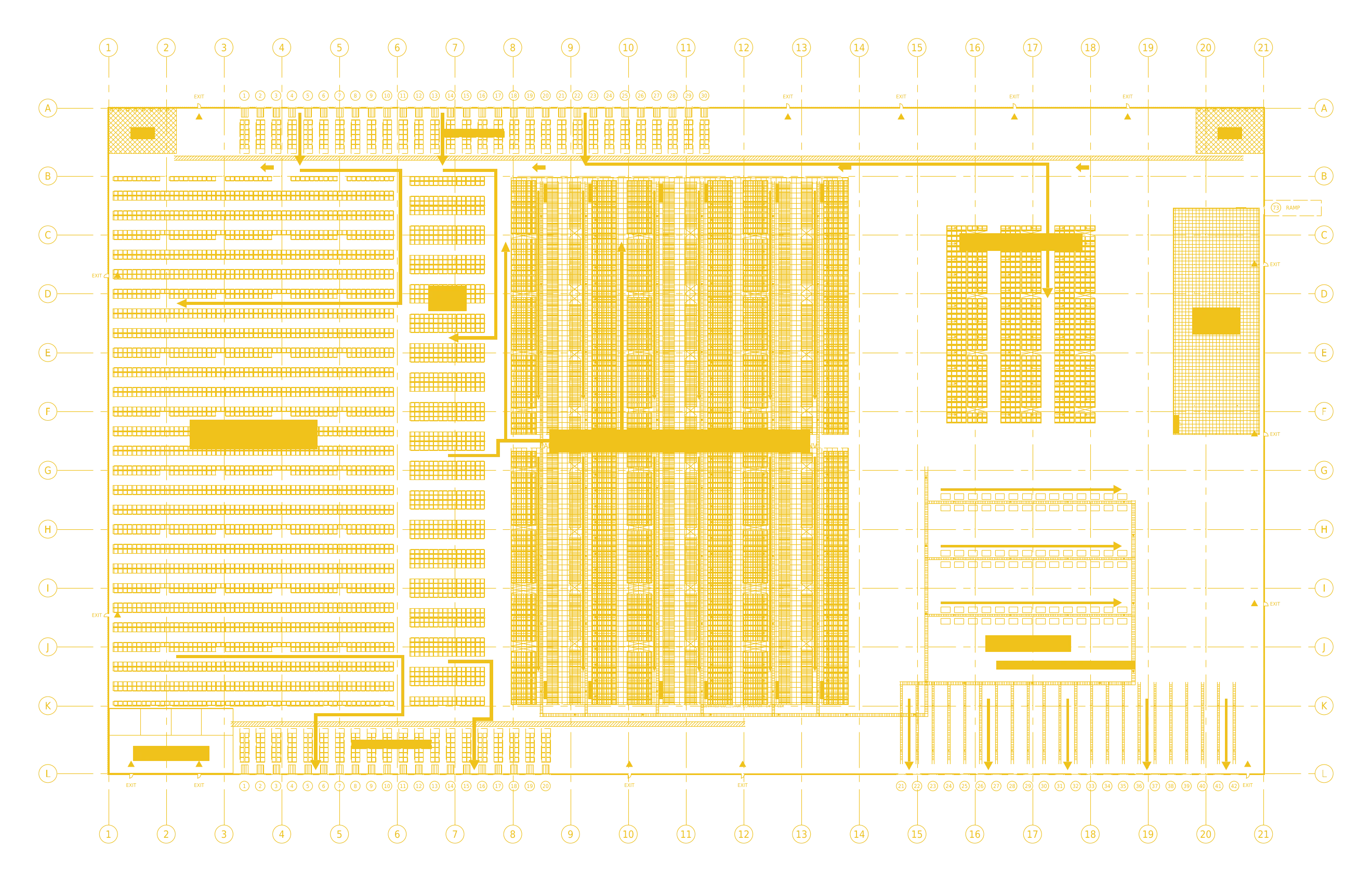

• Draw the grid first, then slide the rows onto the columns. This can decide 8 rows or 9.

Step 6: Height, Sprinklers and the Fire Code

• Rack height: the top load must stay below the sprinkler deflectors by the clearance your sprinkler listing and fire engineer require. ESFR heads often need much more than standard heads. Then pick a standard upright. Rack height calculator.
• Top load height: the fire marshal measures the top of the top pallet, not the top of the upright.
• Flue spaces: transverse and longitudinal flues sized to your sprinkler design, kept open. Flue keepers if loads slide into them.
• High-piled storage: the fire code defines it by storage height and commodity, with a lower height for high-hazard goods. Permits and protection depend on the area and your local code. Check before you design: permits and engineering.
• Egress: exit paths are separate from working aisles. Their width and travel distance come from OSHA and your local building and fire code. Keep dense blocks clear of fire doors.

Step 7: Dock, Staging and the Space You Do Not Rack

Do not rack to the dock doors. Leave room for:

• Dock staging: room for what each door loads or unloads at once. Size it from your trailers and your receiving rate.
• Receiving: counting, labeling, wrapping.
• Pick and pack: benches, carton flow, packing, sortation, near the shipping doors.
• Battery charging or LP storage, with the code's ventilation and clearances.
• Returns, quarantine, empty pallets, trash and baler.

How much of the floor you rack depends on the operation. Bulk storage racks more of it; picking and packing need more open floor.

Step 8: Slot the Product

• Velocity: fastest movers nearest the dock, lowest levels. A small share of SKUs usually makes most of the moves.
• Golden zone: case-pick faces between knee and shoulder height, pallet reserve above.
• Family grouping: items that ship together live together.
• Weight: heavy pallets low, light high; heavy products first on the pick path.
• Re-slot twice a year.

Worked Example: 40,000 sq ft, 24 ft Clear

Building: 200 x 200 ft, 24 ft clear, ESFR sprinklers, 40 ft column grid, 6 dock doors on one wall, 5,000 lb sit-down trucks, 48 x 40 pallets with 50" load height, 2,400 pallets of 600 SKUs.

1. Rack height: floor plus three beam levels at 60" centres: beam tops at 60", 120" and 180" on a 16 ft upright. The top load reaches 180 + 50 = 230", or 19 ft 2". That leaves 58" below the 24 ft clear height. Confirm the clearance the ESFR heads need with the sprinkler listing and your fire engineer. Four pallets high.
2. Dock side: 50 ft of staging and receiving along the dock wall leaves 150 ft of depth for racking.
3. Rows: 48" pallets on 42" frames hang 3" past each side. An 8" clear flue between back-to-back rows needs a 14" gap between frames: 42 + 14 + 42 = 98" of frame, 104" (8 ft 8") to the pallet faces. A single row on a wall is 48". With 12.5 ft (150") aisles: 2 wall rows + 8 double rows + 9 aisles = 96 + 832 + 1,350 = 2,278", about 190 ft of the 200 ft width. That is 18 single rows.
4. Bays: rows run from the staging area toward the back wall. 150 ft less a 12 ft cross aisle at the back leaves 138 ft. A bay repeats every 99" (96" beam plus a 3" upright), plus one end upright: 16 bays = 16 x 99 + 3 = 1,587", about 132 ft.
5. Positions: 18 rows x 16 bays x 2 pallets x 4 levels = 2,304 positions before columns. Each bay a column takes costs 8 more; count them on the drawing. That is short of 2,400 pallets.
6. Trucks: reach trucks at 9 ft (108") aisles fit two more double rows: 2 wall rows + 10 double rows + 11 aisles = 96 + 1,040 + 1,188 = 2,324". That is 22 rows x 16 x 2 x 4 = 2,816 positions, 512 more, so the 2,400 pallets fit. A push-back block for the fast movers can add more; count its lanes on the drawing.

The calculators do this math.

Mistakes We See Every Week

• Aisles laid out before anyone measured the trucks, so the rack gets hit.
• Columns in aisles.
• No flue space, then a fire review that forces changes.
• Beams spaced for the average pallet, so tall ones go on the floor.
• No staging, so the dock fills up.
• Top beam level set to the upright height instead of the fire code.
• No growth plan. Leave the aisle for next year's row.

What We Do

We measure and draw two or three layouts with position count, system mix and price. The drawing becomes the permit package and installation plan. Warehouse design and layout.
