What Bracing Does

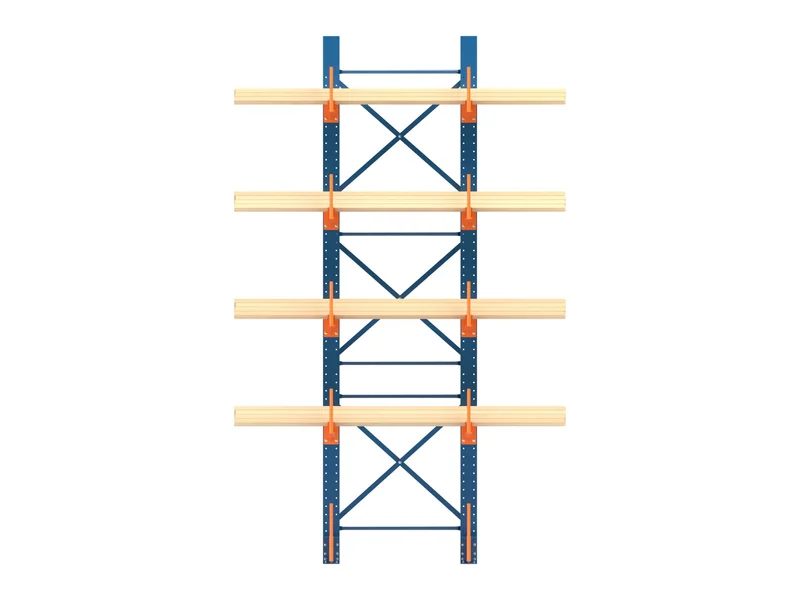

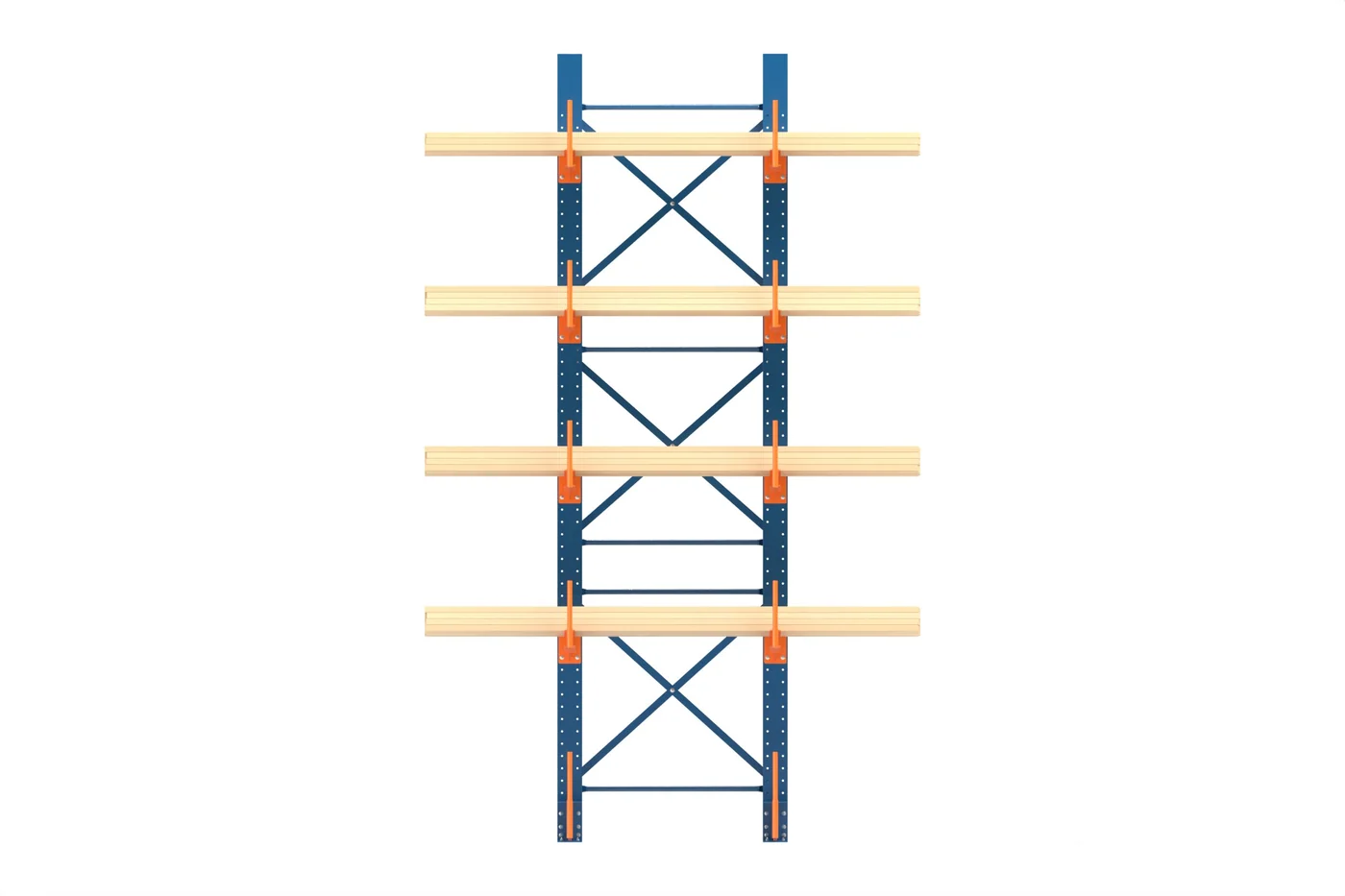

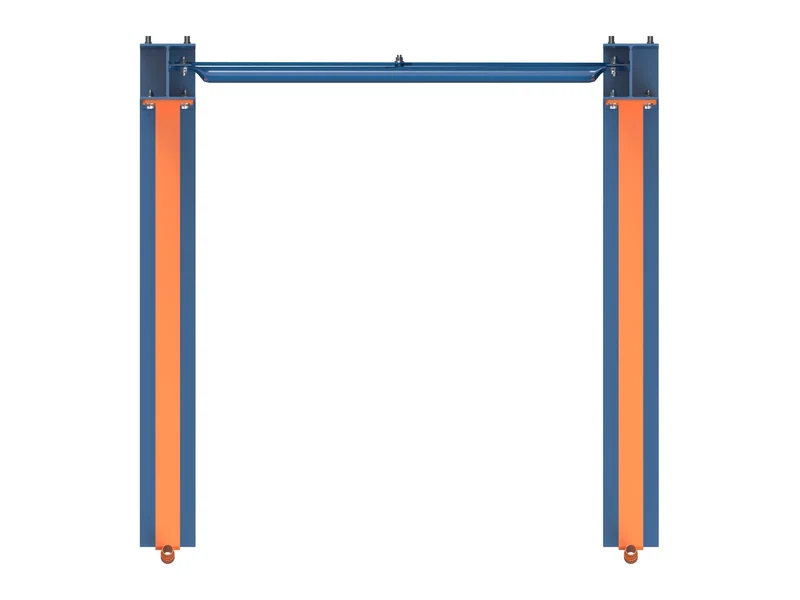

Horizontals hold column spacing; X-braces stop the row leaning sideways. A loaded row without bracing can fall.

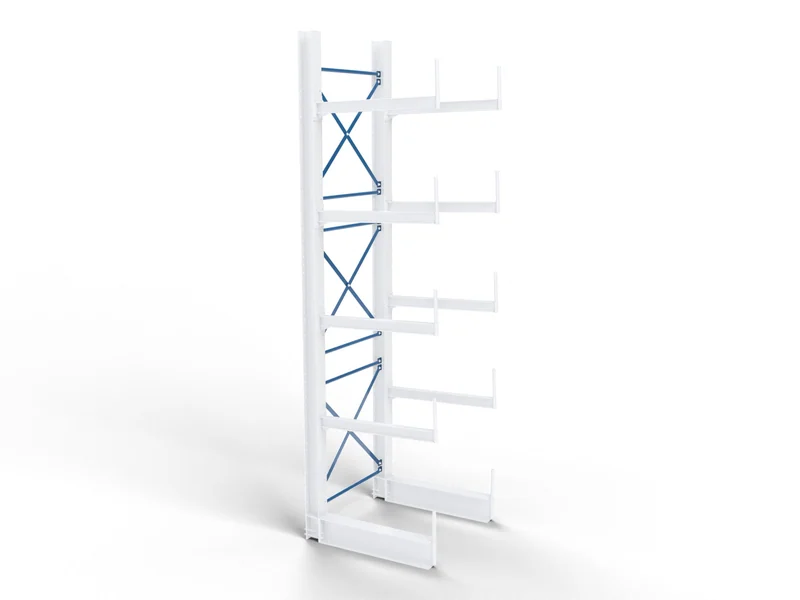

Types of Bracing
How Much Bracing

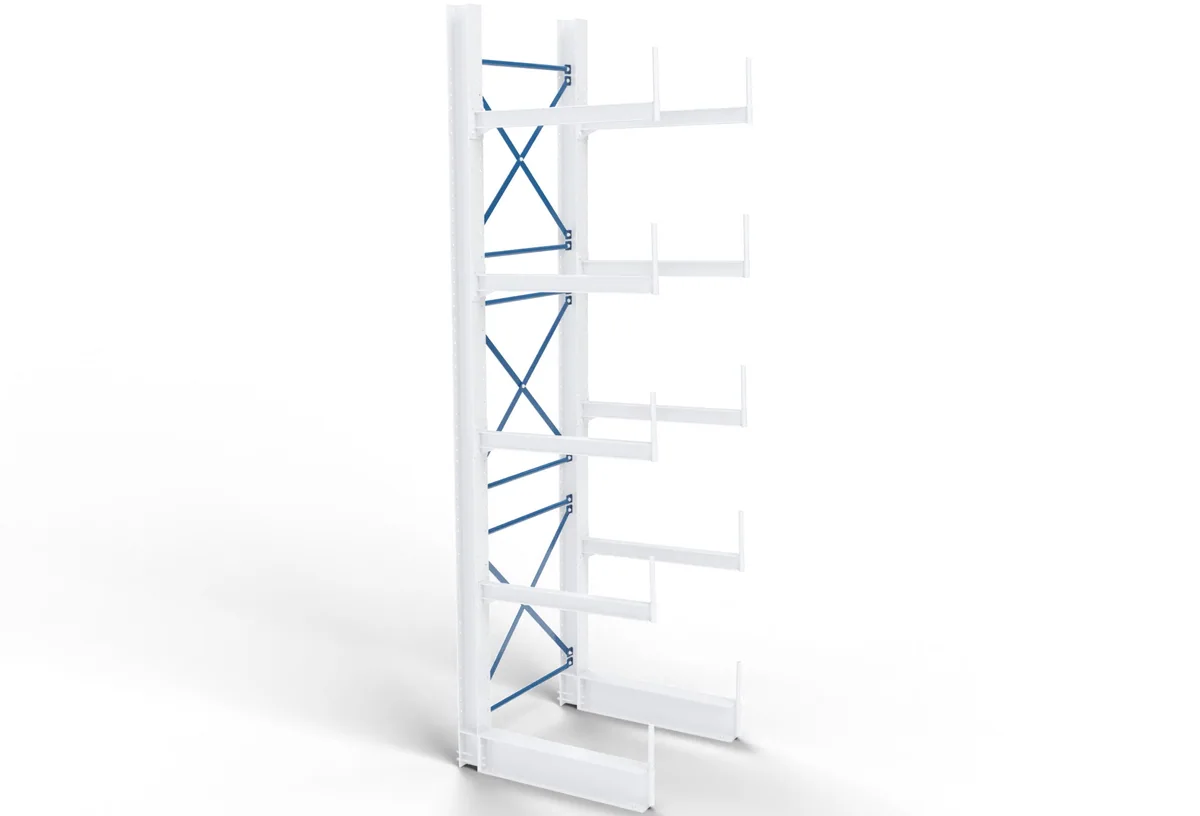

The maker's or engineer's drawing sets the brace sets per bay and which bays get X-bracing. Taller rows get more sets. Seismic areas, tall racks and short rows may need X-bracing in every bay.
Brace Spacing
Sets fit one column spacing: 4' centers cannot stretch to 5'. See columns.
What Goes Wrong
Missing diagonals, removed to fit a long load through. That row is out of service until they go back. We ship brace sets with every used cantilever we sell.
Common questions
Does cantilever rack need bracing?
Yes. Without diagonals a loaded row leans and can fall.
How many braces does a cantilever rack need?
The engineer's drawing gives the count. Taller rows and seismic areas get more.
Can I remove a brace to fit a long load through?
No. A row missing a diagonal is out of service until it is back.
Are brace sets interchangeable between makers?
Rarely; they fit one column spacing and section.
